Digital Mini Pressure Gauge (0-90 psi)

FREE OR FLAT RATE SHIPPING
Ships free with orders over $75, or $8 USA / $5 MI flat rate shipping under $75.

$14.99

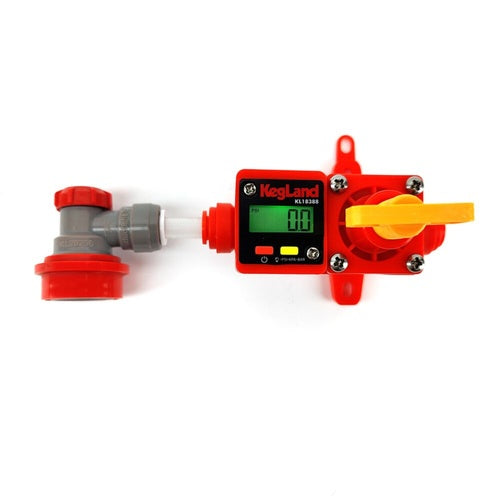

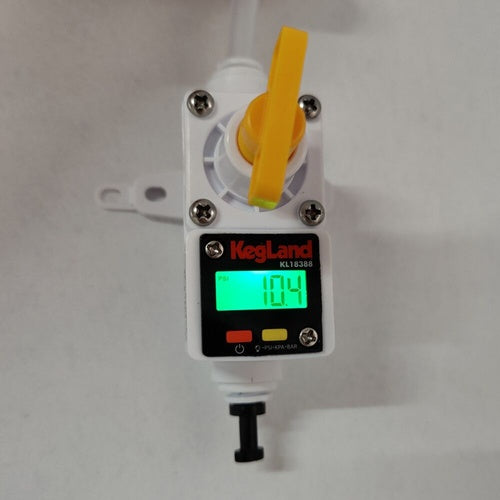

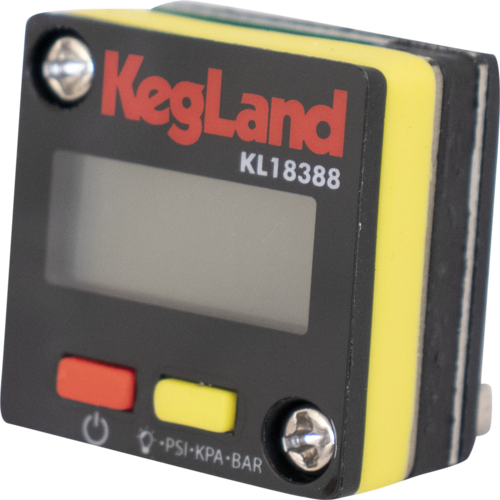

Get instant pressure reads with the back-illuminated Digital Mini Pressure Gauge from KegLand. Swap out the analog pressure gauge on your Core 360 Mini CO2 Regulator, BlowTie 2 Spunding Valve, or Duotight In-Line Regulator. With a 0-90 psi pressure range, the Digital Mini Gauge is suitable for a wide range of applications.

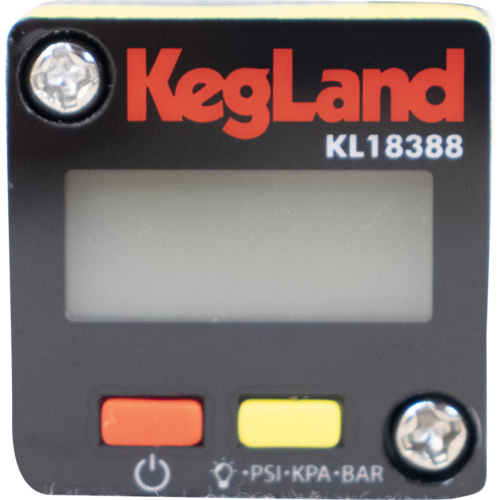

KegLand has developed the world's most compact mini digital gauge with backlight illumination. This very compact design retains high accuracy while still meeting the desirable small form factor.  This meets the growing need as mini keg systems, mini regulators and other more compact keg dispensing solutions are required.

Traditional analog gauges require a small capillary mechanism where a small pipe expands and unravels under pressure. This in turn drives a mechanical cog to rotate the gauge needle.  This age-old technique works quite well, especially in large gauges but as this mechanism is manufactured smaller and smaller a tradeoff between accuracy and size becomes the issue.  With very small gauges such as a 27mm x 27mm Mini Gauge, it's difficult to make them better than 10% accuracy due to the physical constraints of the mechanical components.

Compatible With:

  • BlowTie 2 Spunding Valve
  • Duotight In-Line Regulator w/ Gauge
  • Core 360 Mini CO2 Regulator

Specifications:

  • Battery Life: More than 2 years (using the mini gauge once a day)

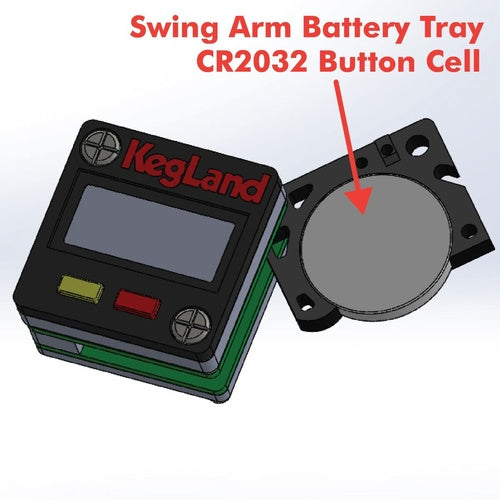

  • Battery Type: CR2032
  • Auto Battery Saver: automatically turns off after 15 sec
  • Size: 27mm x 27mm (1" x 1")

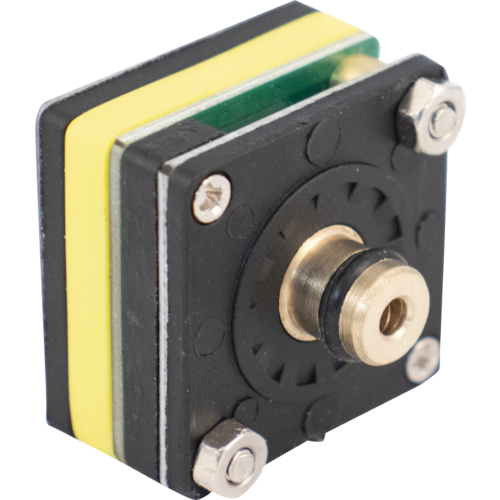

  • Radial O-ring Stem: 7.8mm Bore
  • KegLand Part Number: KL18388

Please note: This gauge is not suitable for measuring pressure of liquids.  It is only for measuring gas pressure.  If liquid gets into the pressure transducer it will damage the gauge.
